FLAT KEY CAM LOCKS


REMOVABLE CAM
FIXED CAM

SPECIFICATIONS:

  5 Tumblers.
  Stainless steel finish. (Black or brass on special order).
  Available keyed differently, keyed alike or master keyed.
  Two keys per lock.
  Key turn 90 or 180 degrees as required.
  Key removal in locked and unlocked positions, or locked
     position only, as required.

In addition to the lock model number, you must specify
rotation and cam. See links below.

Part number consists of model number + cam + rotation.

Example: Part number 1125R050A is:

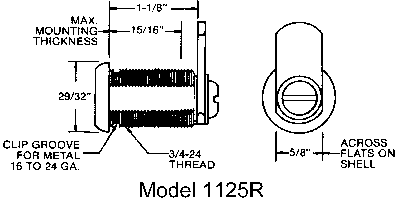

Model 1125R cam lock (1-1/8" barrel, removable cam)
with Part # 050 cam (1-1/2" flat cam)
with Rotation A (90-degree clockwise, 12- to 3 o'clock)


Cam Lock Rotations
Flat Cams
Hook Cams
Bent Cams
Offset Cams
Specialty Locks
